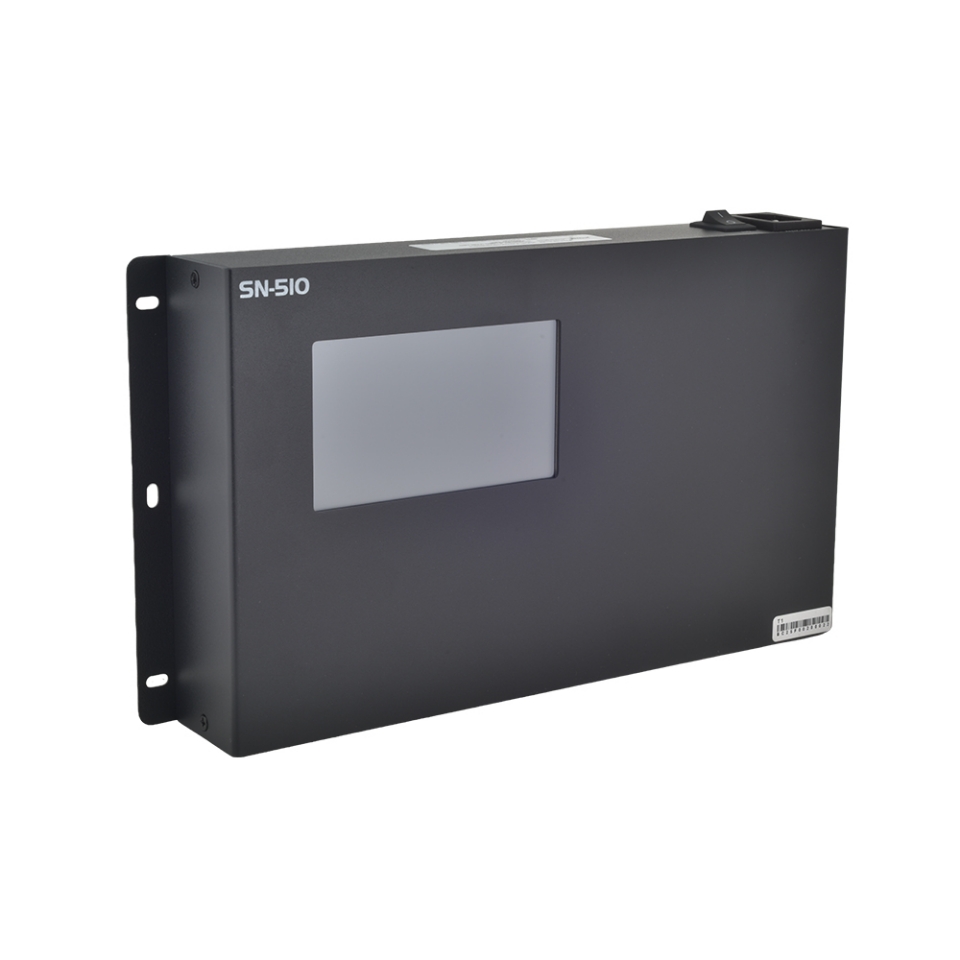

Master LED Controller

  • Range :
    Projectors
  • Code :
    MASTER-LED-CONTROLLER
  • Description :
    Jaquar Master LED Controller is an intelligent Cloud based master processor which Support PC and SD card integrated control; work with sub controllers, can switch freely between PC control and SD card control automatically, when needed
Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  • read more...
Technical Specifications:
  • Input voltage:100V–240V AC @ 50Hz
  • Operating temperature :-15°C ~ +60°C
  • Humidity : ≤50% RH
  • Power consumption : <10W
  • Environment: IP20
  • Master cascade signal: Optocoupler
  • Sub controller signal : Ethernet protocol
  • Network interface : RJ45 Ethernet interface
  • Control capacity : Up to 154 Sub-controllers or 4,00,000 channels
  • Transmission distance: Use UTP (unshielded twisted pair) cable, distance between controllers can be 100m
  • Weight :1300 gm
  • Memory : SD card up to 16GB
  • Dimension : 285mm (L) × 156mm (W) × 44mm (H)
