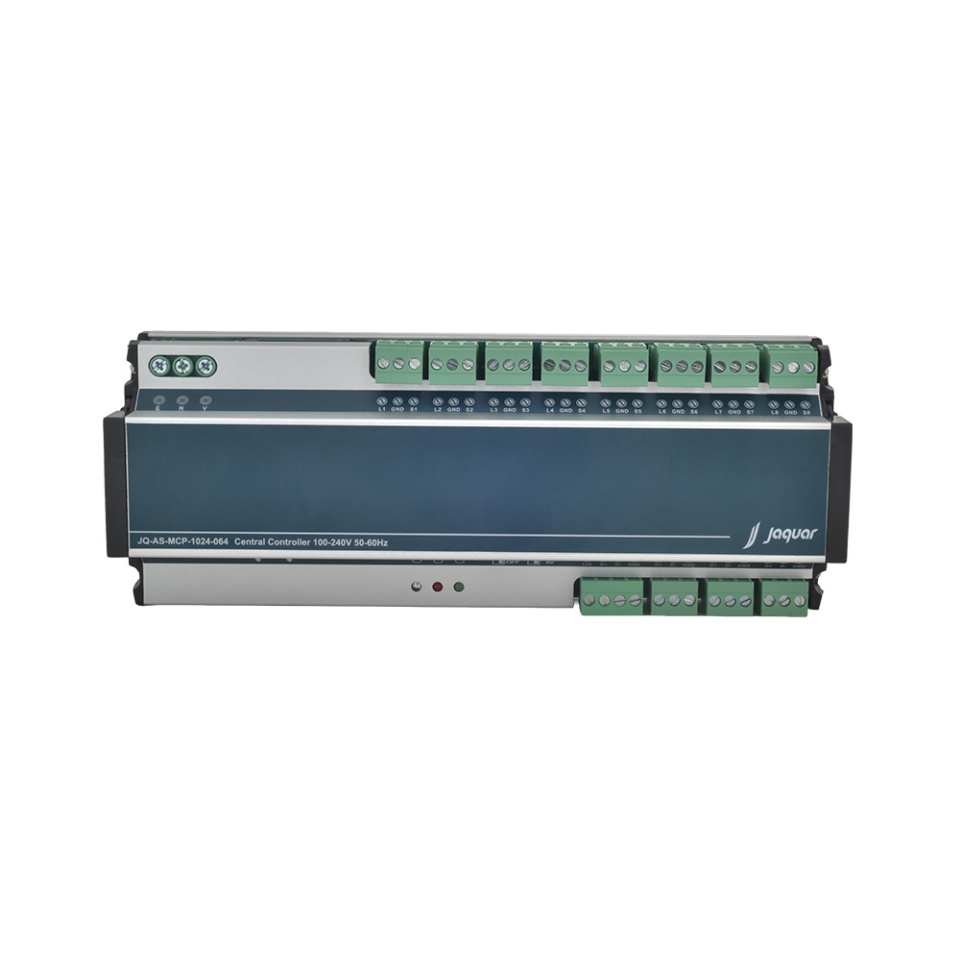

Jaquar MCP System

Name: Jaquar MCP System
Brand: Jaquar
Rating: 5 (15 reviews)

Range :
Projectors
Code :
JQ-AS-MCP-1024-064
Description :
Features :
- Jaquar-MCP system
- Two DMX-512 universes. Up to 1024 channels.
- Up to 64 zones, 16 scenes can be stored in each zone.
- ECP panels compatible.
- Built-in timer and astronomical timer.
- Programmable by JQASMCP GUI.
- 8 dry contact inputs.
- Emergency scene feature
- MODBUS RTU support
Specifications :
- AC Input: 100 - 240V AC
- Protocol: JQNET (control panels),DMX-512 (dimmers packs, switch packs, or other DMX-512 modules),MODBUS RTU
- Dry contact inputs x 8
- Dimension:234mm (W) x 64mm (H) x 90mm (D)
- Weight:660g
