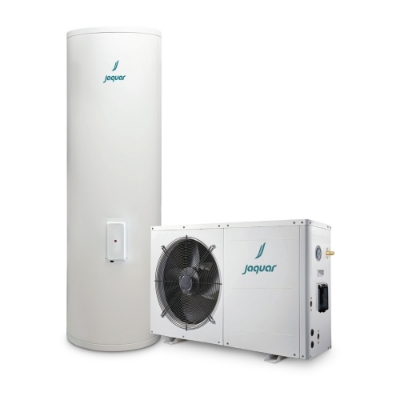

Integra-X Split Heat Pump 500 LTR

  • Range :
    Heat Pump
  • Code :
    HPS-WHT-500X
  • Description :
    For use in multiple bathrooms with shower panels & bathtubs
Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  • read more...

Product Specifications:-

Details Integra-x Split Heat Pump
Tank Volume (L) 500
Rated Heating Capacity (kW) 12.0
Rated Input Power (kW) 2.95
Working Ambient Temperature (℃) -7~43
Max Outlet Temperature (℃) 60/75
Required Power Supply (V/Ph/Hz) 220/1/50
Heating Element (kW) 4.0 kW
Refrigerant Type R410a
Product Dimension (mm) Unit- 420X800X986
Tank- 733 X1820
Weight - Net/ Gross (Kg) Unit - 96/104
Tank -126/136
Warranty 4 Years on Tank
2 Years on Heating Element, Compressor with Sealed System
1  Year on other  components
