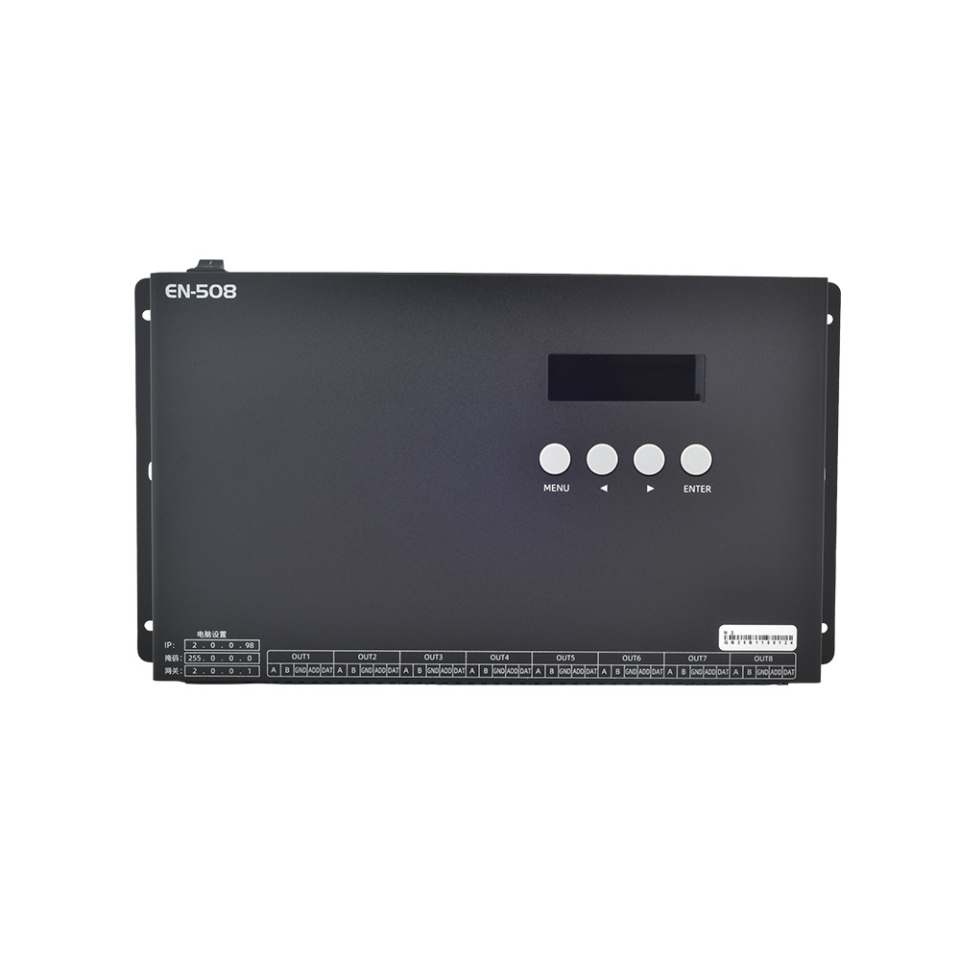

Sub LED Controller

  • Range :
    Projectors
  • Code :
    SUB-LED-CONTROLLER
  • Description :
    SUB LED Controller is an LED controller with unique data processing method for the display on complex architectural building facade.
Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  • read more...
Technical Specifications:
  • Operating temperature: -15°C ~ +60°C
  • Humidity: ≤50% RH
  • Power consumption :≤5W
  • Environment: IP20
  • Cascade signal : Optocoupler
  • Master controller signal: Ethernet protocol
  • Network interface : RJ45 Ethernet interface
  • Output signal: TTL & RS-485 × 8 Ports
  • Control capacity: Up to 154 Sub-controllers or 4,00,000 channels
  • Transmission distance: Use UTP (unshielded twisted pair) cable, distance between the controllers can be
  • Weight : 1500 gm
  • Dimension : 285mm (L) × 156mm (W) × 44mm (H)
